Box mini-project

from manim import *
config.media_embed = True; config.media_width = "100%"
_RV = "-v WARNING -qm --progress_bar None --disable_caching Example"
_RI = "-v WARNING -s --progress_bar None --disable_caching Example"

Manim Community v0.15.1

Target

Let’s create the following animation, we will create the Box object and define two animations OpenBox and CloseBox, which will only work for this particular VMobject.

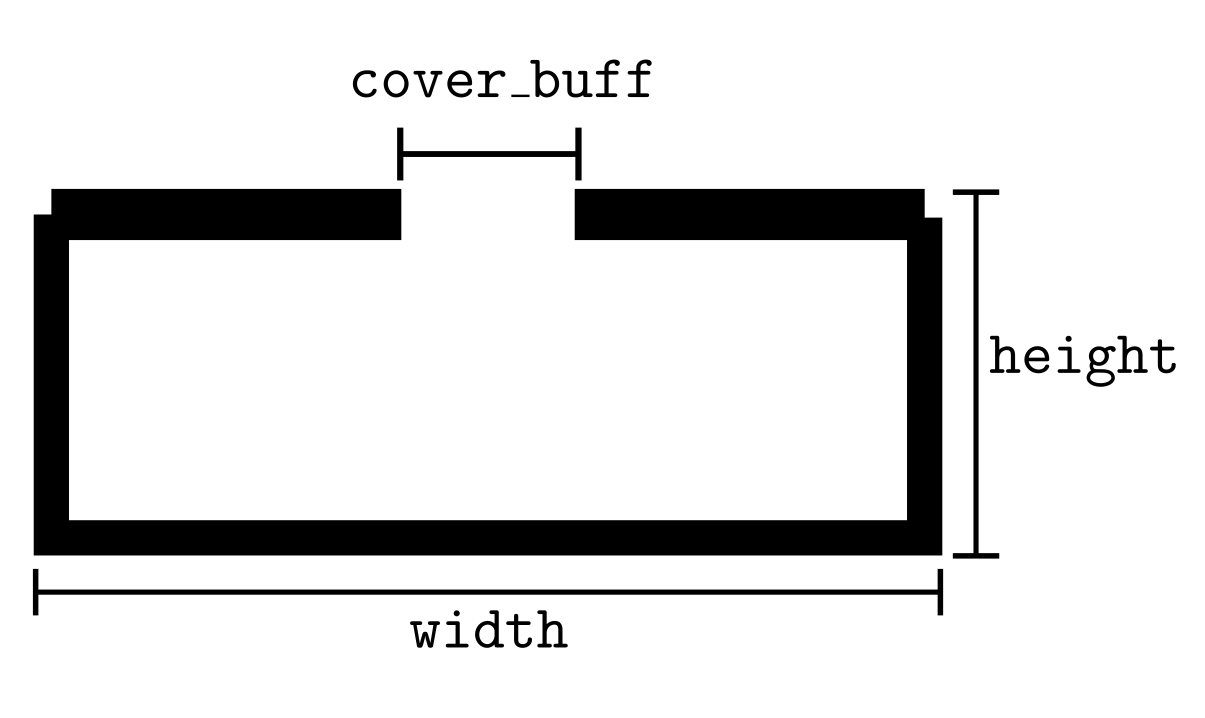

Box definition

ANGLE_OPEN_BOX = PI * 2.3 / 2

class Box(VMobject):
    def __init__(self,
                 width=6,
                 height=3,
                 cover_buff=None,
                 fill_opacity=0.5,
                 fill_color="#cdab7e",
                 stroke_color="#D2B48C",
                 open=False,
                 **kwargs):
        super().__init__(fill_opacity=fill_opacity,
                         fill_color=fill_color,
                         stroke_color=stroke_color,
                  **kwargs)
        if cover_buff is None:
            cover_buff = width * 0.8 / 2
        else:
            assert (cover_buff < width/2), "cover_buff >= width/2"
        main_rect = Square(width,color=RED)
        # 0.25 is Up right corner
        # 1 is Up left corner, remember vmob.point_from_proportion(alpha)
        self.base_box = main_rect.get_subcurve(0.25,1).match_style(self)
        self.base_box.stretch_to_fit_height(height)
        self._open = open
        self.new_stroke = self.base_box.get_stroke_width() * 4
        self.left_cover = self.get_cover(RIGHT,cover_buff)
        self.right_cover  = self.get_cover(LEFT,cover_buff)
        covers = VGroup(self.left_cover,self.right_cover).match_color(self)
        self.add(self.base_box, *covers)

    def get_cover(self, side, cover_buff):
        pivot_index = 0 if side[0] == 1 else -1
        pivot = self.base_box.get_all_points()[pivot_index]
        cover = Line(pivot, pivot + side * cover_buff, stroke_width=self.new_stroke)
        if self._open:
            cover.rotate(ANGLE_OPEN_BOX*side[0],about_point=pivot)
        return cover

Animations

class OpenBox(Animation):
    def __init__(self, box, open=True, run_time=3, **kwargs):
        # Assert open/close
        _open = "open" if open else "close"
        assert (box._open != open), f"box is already {_open}"
        # Define sign
        self._sign = 1 if box._open else -1
        super().__init__(box, run_time=run_time, **kwargs)

    def interpolate_mobject(self, alpha):
        self.mobject.become(self.starting_mobject)
        self.rotate_cover(self.mobject.right_cover, alpha)
        self.rotate_cover(self.mobject.left_cover, alpha, -1)

    def rotate_cover(self, cover, alpha, sign=1):
        cover.rotate(
            sign * self._sign * self.rate_func(alpha) * ANGLE_OPEN_BOX,
            about_point=cover.get_start(),
            about_edge=cover.get_start(),
        )

    def clean_up_from_scene(self, scene):
        # change open to close or close to open at the end
        self.mobject._open = not self.mobject._open
        super().clean_up_from_scene(scene)

When creating animations or objects that are going to be reused, it is a good idea that we do unnecessary redefinitions.

class CloseBox(OpenBox):
    def __init__(self, box, open=False, **kwargs):
        super().__init__(box, open, **kwargs)

class Example(Scene):
    def construct(self):
        b = Box()
        self.play(DrawBorderThenFill(b))
        self.play(OpenBox(b))
        self.play(CloseBox(b))
        self.play(OpenBox(b))
        self.play(CloseBox(b))
        self.wait()

%manim $_RV

Assert test

If the box is open from the beginning then it should give us an error:

class Example(Scene):
    def construct(self):
        b = Box(open=True)
        self.add(b)
        self.play(OpenBox(b))
        self.wait()

%manim $_RV

---------------------------------------------------------------------------
AssertionError                            Traceback (most recent call last)
Input In [6], in <cell line: 8>()
      5         self.play(OpenBox(b))
      6         self.wait()
----> 8 get_ipython().run_line_magic('manim', '$_RV')

File ~/GitHubProjects/mce-inter/docs/venv/lib/python3.9/site-packages/IPython/core/interactiveshell.py:2294, in InteractiveShell.run_line_magic(self, magic_name, line, _stack_depth)
   2292     kwargs['local_ns'] = self.get_local_scope(stack_depth)
   2293 with self.builtin_trap:
-> 2294     result = fn(*args, **kwargs)
   2295 return result

File ~/GitHubProjects/mce-inter/docs/venv/lib/python3.9/site-packages/manim/utils/ipython_magic.py:148, in ManimMagic.manim(self, line, cell, local_ns)
    146     SceneClass = local_ns[config["scene_names"][0]]
    147     scene = SceneClass(renderer=renderer)
--> 148     scene.render()
    149 finally:
    150     # Shader cache becomes invalid as the context is destroyed
    151     shader_program_cache.clear()

File ~/GitHubProjects/mce-inter/docs/venv/lib/python3.9/site-packages/manim/scene/scene.py:222, in Scene.render(self, preview)
    220 self.setup()
    221 try:
--> 222     self.construct()
    223 except EndSceneEarlyException:
    224     pass

Input In [6], in Example.construct(self)
      3 b = Box(open=True)
      4 self.add(b)
----> 5 self.play(OpenBox(b))
      6 self.wait()

Input In [3], in OpenBox.__init__(self, box, open, run_time, **kwargs)
      2 def __init__(self, box, open=True, run_time=3, **kwargs):
      3     # Assert open/close
      4     _open = "open" if open else "close"
----> 5     assert (box._open != open), f"box is already {_open}"
      6     # Define sign
      7     self._sign = 1 if box._open else -1

AssertionError: box is already open

It works, using assert is a good idea when we need our animations to have certain structures.
